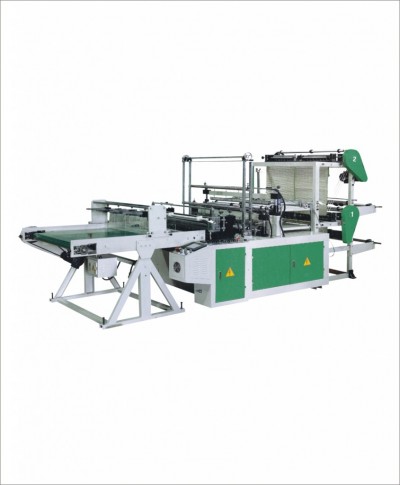

MD-HC double layer four line bottom sealing bag making machine

MD-HC double layer four line bottom sealing bag making machine
  1. Double-layer,four lines bottom sealing bag making machine has such functions as photoelectric automatic tracking microcomputer length setting, high limit stopping, automatic counting, automatic alarm on reaching the set value. high compensation accuracy with such characteristics as neatbags, little error and high automatic of whole machine, so it is a kind of ideal equipment for producing blank bags, color bags, flat bags and vest bags .and other various plastic soft packing bags.
  2. Standard equipment

Relay, electromagnetic valve ,step motor, transducer, computer control system, cylinder, inverter, temperature controller, color patch photoelectric ,heating system, button switch, dc motor, approach switch, temperature system


Model MD-HC650A MD-HC850A MD-HC1000A
Max. bag making width 600 800 900
Max. bag making length 1000mm 1000mm 1000mm
Speed 30-100pcsX4 30-100pcsX4 30-100pcsX4
Film thickness 0.01-0.2mm 0.01-0.2mm 0.01-0.2mm
Main motor 0.75kw 1.5kw 1.5kw
Step motor 350A 350C 350C
Feeding motor 400WX4pcs 400Wx4pcs 600Wx4pcs
Heating motor 800Wx4pcs 800Wx4pcs 1000Wx4pcs
Working voltage 50HZ 220V 50HZ 220V 50HZ 220V
Machine size 2800X1900X1600mm 2800X2100X1600mm 2800X2300X1600mm
Machine weight 900kgs 1100kgs 1200kgs
